Advantest Q8384 光谱分析仪

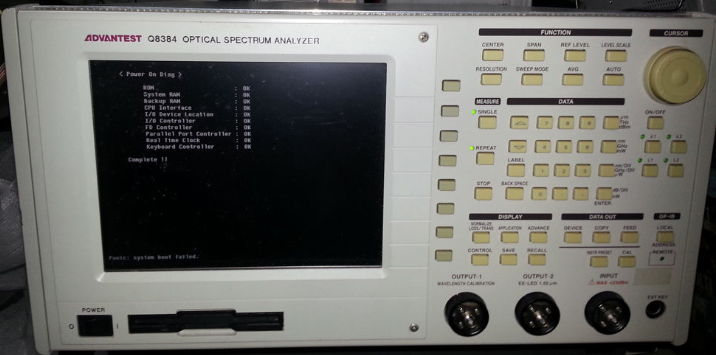

Description : Advantest Q8384 Optical Spectrum Analyzer (OSA)
Specs at a glance for the Q8384:

- Wavelength Range: 600 to 1700 nm
- Dynamic Range: >50 dB (± 0.1 nm from peak wavelength)
- Wavelength Accuracy: <±500 pm
- Wavelength Linearity: <±10 pm (1530 to 1570 nm)
- Wavelength Repeatability: <±3 pm (1530 to 1610 nm)
- Polarization Dependency: <±0.05 dB (1250 to 1610 nm)


Additional Information
- Option 25: Wavelenth Calibration: EE-LED 1.55um
- Wavelength Resolution:
- Resolution Accuracy: <±3% (Res. 50 pm, 1530 to 1610 nm)
- Level Accuracy: <±0.4 dB (1550 nm)
- Level Linearity: <±0.05 dB (-50 to -10 dBm, 1550 nm)
- Sweep Time: <500 ms (Span 10 nm, Normal Mode,1550 nm, average 1 time, 501 samples)


The Q8384 is an Optical Spectrum Analyser for a wide range of applications including light source evaluation, measurement of loss wavelenght characteristics in optical devices and waveform analysis of WDM Systems.
