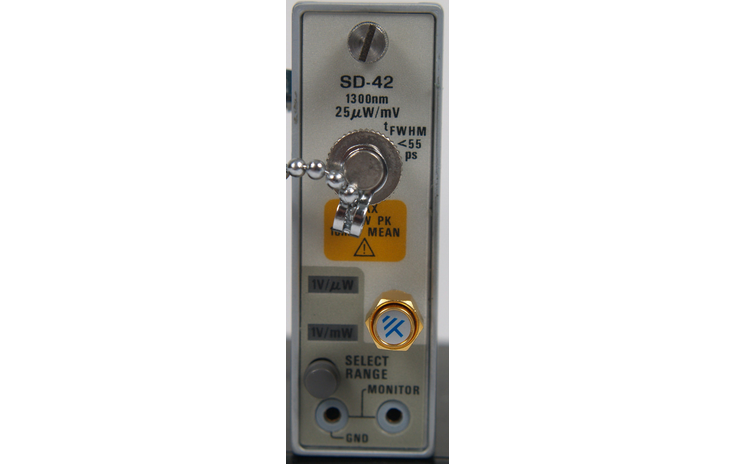

SD42 is an optical-to-electrical (O/E) converter for use with the Tektronix CSA803 and 11800 Series sampling oscilloscopes equipped with an SD2x or SD3x Electrical Sampling Head. The SD42 converter can be plugged directly into an 11800 sampling slot or CSA803 power slot. The optical signal input is a standard FC/PC fiber optic connector. Other connector types can be accommodated by using optional hybrid fiber optic jumper cables. The SD42 has an average power meter capability when used with a Digital Multimeter (DMM) which has selectable ranges of 1 V/mW and 1 V/µW.
Applications:
High Speed Optical Communication Testing (SONET/SDH)
Optical Source and Device Characterization
Pulse Shape Analysis
Analyze Relaxation Oscillation
This unit has the following specifications:
For use with CSA803C and 11801C Sampling Oscilloscopes
Wavelength: 1000 to 1700 nm
Bandwidth: DC to 6.0 GHz
Impulse Response (FWHM): < or = to 55 ps
Noise Equivalent: 23 pW per squareroot Hz
Peak Power: < or =to 25 mW
Average Power: < or =to 5 mW
